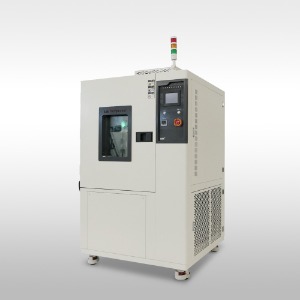

Small Rapid Temperature Change (Wet Heat) Test Chamber

In response to the testing and R&D requirements of electronic components such as semiconductors and automotive electronics, Lab Companion has developed a smaller capacity small rapid temperature change (wet heat) test chamber. While maintaining the advantages of standard rapid temperature change test chambers, it can also meet the needs of customers who have requirements for space size, with a single-phase 220VAC voltage specification. It can also meet the equipment usage requirements of customers in civilian office areas such as research institutions and universities.

Its main features are as follows:

1. It has powerful heating and cooling performance

2. Heating rate: 15℃/min; Cooling rate: 15℃/min

3. (Temperature range: -45℃ to +155℃)

4. Single-phase 220VAC, meeting the electricity demands of more customers

5. Single-phase 220VAC, suitable for industrial and civil power supply specifications, can meet the equipment power demands of customers in civil office areas such as research institutions and universities.

6. The body is small and exquisite, with a compact structure and easy to move

7. The miniaturized structure design of the test chamber can effectively save configuration space.

8. The inner tank volume is 100L, the width is 600mm, the depth is less than 1400mm, and the product volume is less than 1.1m ³. It is suitable for the vast majority of residential and commercial elevators in China (GB/T7025.1).

9. The standard universal wheels enable the product to move freely at the installation site.

10. Standard air-cooled specification is provided, facilitating the movement and installation of the product

11. At the same time, it saves customers the cost and space of configuring cooling towers.

12. A more ergonomic operation touch screen design

13. Through the multi-angle adjustment of the touch screen, it can meet the operation needs and provide the best field of vision for users of different heights, making it more convenient and comfortable.

14. Energy-saving cold output temperature and humidity control system, with dual PID and water vapor partial pressure control, features mature technology and extremely high precision.

15. Network control and data acquisition can be carried out through the interface (RS-485/GPIB/Web Lan/RS-232C).

16. It is standard-equipped with left and right cable holes (50mm), which facilitates the connection of power on the sample and the conduct of multiple measurements.

17. The controller adopts a color LCD touch screen, which is simple and convenient to operate

18. Through the controller, two control methods, fixed value and program, can be selected to adapt to different applications.

19. The program control can be set to 100 modes, with 99 steps for each mode. Repeat the loop up to 999 times.

20. Multiple languages can be easily switched (Simplified Chinese, English), and test data can be stored on a USB flash drive.
