In the reliability testing of new energy, electronic and electrical, aerospace and other fields, the multi-layer high and low temperature humidity test chamber breaks through the limitations of traditional single-chamber equipment by virtue of structural and technological innovations, becoming a core equipment for efficient and accurate environmental simulation testing. Its core features are as follows:
1. Layered Independent Structure to Block Working Condition Interference
• Adopts a vertical layered core structure with 3-5 built-in independent sealed chambers, made of 316L stainless steel for high/low temperature corrosion resistance and deformation resistance.
• High-density thermal insulation materials (thermal conductivity ≤0.023W/(m·K)) are installed between layers, combined with double-channel silicone rubber seals and door gap heating defrost strips to form a strong "thermal barrier".
• Practical tests confirm simultaneous operation of 80℃/95%RH (top layer) and -30℃/30%RH (bottom layer), with inter-chamber interference ≤1%, ensuring the independence and accuracy of multi-variable tests.
2. Parallel Testing Mode to Maximize Efficiency
• Breaks the time-consuming bottleneck of traditional "serial testing" and realizes "spatial parallel testing" upgrade.
• A four-layer equipment can simulate four different temperature and humidity conditions simultaneously; 16 sample groups complete 4-day test volume of ordinary equipment in 8 hours, improving efficiency by 12 times.
• Each chamber is equipped with independent compressors, humidifiers and air duct systems, supporting parallel operation of composite working conditions (constant temperature, alternating, low temperature, etc.), shortening R&D cycles by 30% (verified by new energy enterprises).
3. Dual-Algorithm Precision Control with Excellent Data Stability
• Adopts coordinated control of "PID + fuzzy control" dual algorithms, combined with high-precision capacitive sensors and temperature compensation technology.
• Temperature fluctuation is stabilized at ±0.5℃, humidity deviation ≤±3%RH (up to ±2%RH for some models); multi-directional guide fans and flow equalizing plates eliminate in-chamber temperature gradient, ensuring uniform environmental impact on samples.
• Fuzzy control adjusts refrigeration power quickly for sudden load changes, restoring stable conditions within 3-5 minutes and avoiding test interruption caused by temperature/humidity overshoot.
4. Intensive Energy-Saving Design to Reduce Comprehensive Costs
• Optimized design of "shared main unit + layered frequency conversion" reduces floor area of a three-layer equipment to 35% of three single-chamber equipment; centralized power supply cuts line cost by 40%.
• Frequency conversion module dynamically adjusts power based on chamber load, with total energy consumption 40% lower than same-capacity ordinary equipment and single-unit power ≤5kW.
• Reduces per-batch test cost by over 30% for enterprises, balancing space utilization, energy conservation and operation economy.
5. Intelligent Data Management to Meet Standardized Requirements
• Supports independent storage and on-screen display of layered data, generates "temperature-humidity-layer number" 3D curves, and automatically exports CNAS-certified reports to meet ISO, GB/T and other traceability standards.
• High-end models are equipped with IoT modules for remote monitoring, fault early warning and connection with R&D management systems, reducing material thermal aging rate analysis error from ±8% to ±1.5% and realizing full-process digital test control.
In summary, with the core advantages of "multi-chamber independence, efficient parallelism, precise control and energy-saving intensification", the equipment reconstructs environmental testing logic, provides technical support for product reliability verification, and becomes a key tool for R&D and quality control in high-end manufacturing.
High-low temperature test chambers are essential equipment in product reliability testing. However, many procurement managers struggle when choosing between standard models and rapid temperature change (RTC) models: What are the key differences? How much is the price gap? Which is more cost-effective for long-term use?
This guide clarifies the core differences in performance, applications, and costs to help you make the right choice.
I. Core Performance Differences: Beyond "Faster Heating/Cooling"
The gap between the two is far more than just temperature rate—extending to structural design and testing capabilities.
Comparison Dimension
Standard High-Low Temperature Chamber
Rapid Temperature Change Chamber
Temperature Rate
0.7-1℃/min (standard), meeting basic testing needs
3-20℃/min (customizable), some models support linear heating/cooling
Structural Design
Single compressor + standard air duct, simple structure
Dual-compressor cascade system + high-efficiency heat exchange module + impact-resistant structure, suitable for high-frequency temperature changes
Temperature Control Precision
Fluctuation ±0.5℃, uniformity ±2℃
Fluctuation ±0.3℃, uniformity ±1.5℃, no overshoot during temperature changes
Core Testing Capability
Complies with GB/T 2423 standard; suitable for steady-state high-low temperature storage and temperature resistance testing
Simulates extreme rapid temperature change environments; supports accelerated aging testing, significantly shortening verification cycles
Standard chambers suffice for consumer electronics, small home appliances, etc. For new energy batteries, automotive components, aerospace, RTC chambers are a must—they accurately simulate severe temperature changes during transportation/use to expose product defects in advance. Example: An automotive parts enterprise reduced testing cycles from 3 months (standard chamber) to 1 month (RTC chamber), advancing product launch by 2 months.
II. Cost Differences: Procurement, Operation & Maintenance
RTC chambers are more expensive, but the specific cost gap and long-term expenses are detailed below:
1. Procurement Cost: 2-5x Higher, Driven by High-Quality Components
For the same volume, RTC chambers cost 2-5x more than standard models. The gap stems from high-precision dual compressors, custom heating/cooling modules, and fatigue-resistant structural parts—all with higher R&D and production thresholds.
2. Operating Cost: Higher Power & Consumables
RTC chambers consume 1.5-3x more power: A 100L standard chamber uses 5-8kW, while an RTC model uses 8-20kW. Electricity costs increase with usage frequency. RTC chambers also require special high-temperature heat transfer oil and eco-friendly refrigerants, with consumable costs twice that of standard models (which mainly use low-cost filters and sensor calibration).
3. Maintenance Cost: Complex Structure = Higher Requirements
Standard chambers have simple structures and few wearing parts, with low annual maintenance costs (filter replacement, sensor calibration). RTC chambers require more frequent maintenance due to multiple core components and high precision; annual maintenance costs are 1.8-3x higher (e.g., dual compressor and precision control system overhauls).
III. Selection Guide: Choose Based on Needs
✅ Choose Standard Chamber If:
1. You’re in consumer electronics, home appliances, toys, etc., and only need to meet GB/T 2423 standard
2. Budget is limited, pursuing cost-effectiveness, and testing frequency is low
1. Testing goals: Basic high-low temperature storage and temperature resistance verification
✅ Choose RTC Chamber If:
2. You’re in new energy, automotive, aerospace, needing to simulate extreme temperature changes
• You want to shorten testing cycles and accelerate product launches
• High testing requirements: Precise temperature rate control and no overshoot
IV. Lab Companion: Customized Cost-Effective Solutions
As a professional test equipment manufacturer, Guangdong Hongzhan Technology offers cost-effective standard high-low temperature chambers and customizable RTC chambers (3-20℃/min) for new energy, automotive, and other industries with strict requirements.
Lab Companion provide not only equipment but also one-stop customized solutions based on your testing needs and budget—helping you clarify costs and select the right chamber for efficient, worry-free product reliability testing.
Contact us anytime for accurate quotes and customized selection plans tailored to your industry and needs!

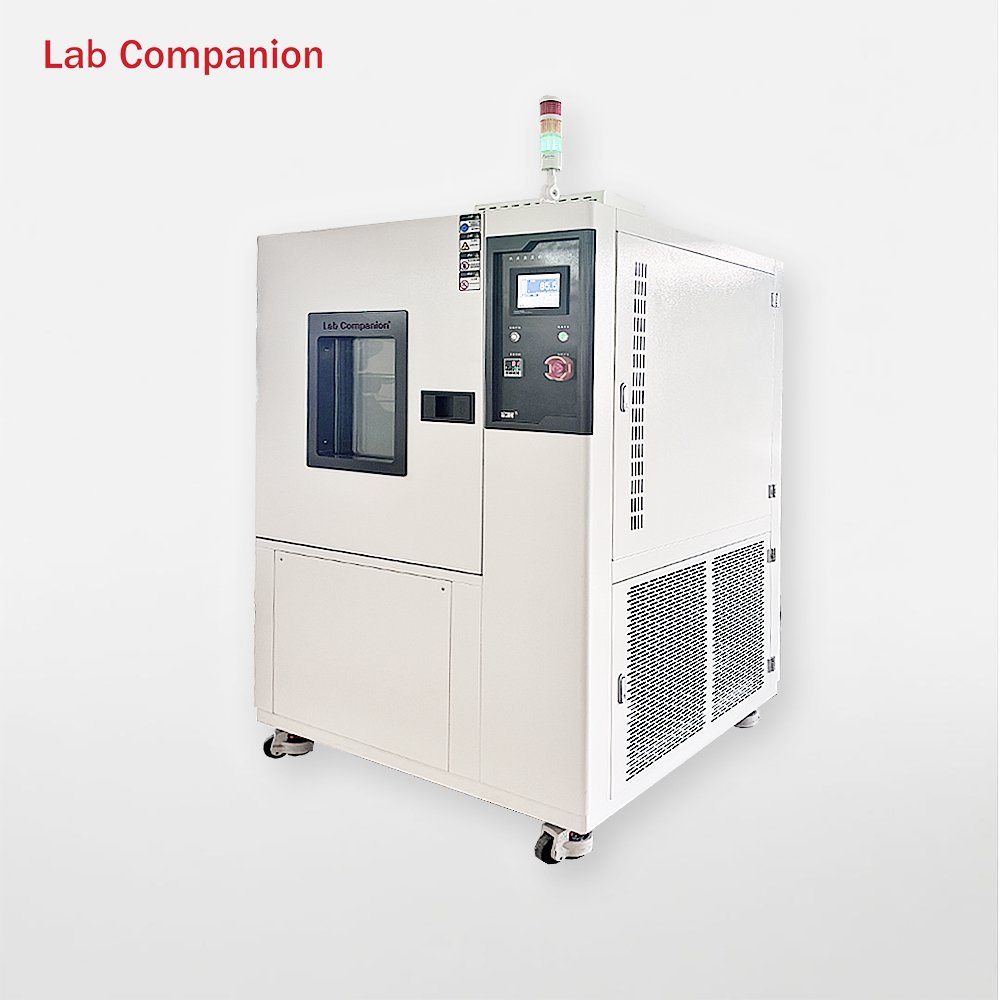

Core Logic: Match testing requirements, balance performance and full life-cycle cost, and avoid over-specification for under-utilization.
I. Core Testing Requirements
1. Temperature Change Rate
Clarify the loaded rate and deviation requirements (e.g., ≤±0.5℃/min), and match the application scenarios:
l 5–10℃/min for consumer electronics
l 10–20℃/min for automotive/aerospace industries
2. Temperature & Humidity Range
Cover the specified testing standards:
l -40~85℃ for new energy products
l -55~125℃ for aerospace products
Select models with 20%–98%RH range if humidity testing is required.
3. Sample Compatibility
l The chamber volume should be ≥ 3 times the sample volume.
l Dynamic load compensation is required for high-heat-capacity samples (e.g., metal components).
II. Hardware Performance
1. Refrigeration System
Prioritize dual-compressor cascade systems equipped with imported brands (Danfoss/Copeland) and eco-friendly refrigerants (R404A/R23).
2. Air Duct & Heating System
Adopt scroll diversion + baffle design, with 0–100% linear adjustment of heating tubes.
3. Sensors
Use imported PT1000 sensors with a sampling frequency of ≥ 10 times/second.
III. Software Functions
1. Algorithm
PID closed-loop control + adaptive temperature zone compensation, supporting custom rate curve setting.
2. Data Management
Automatic data recording and export (Excel/CSV format), with support for remote control and multi-channel alarm.
3. Safety Features
Over-temperature protection, compressor overload protection, water shortage protection, etc. Explosion-proof pressure relief devices are mandatory for flammable and explosive samples.
IV. Full Life-Cycle Cost
1. Procurement Cost
Select models based on actual needs; avoid blind pursuit of high rates (the price of 10℃/min models is 1.5–2 times that of 5℃/min models).
2. Operation Cost
Prefer inverter compressors to reduce electricity consumption by 15%–20%.
3. Maintenance Cost
Choose models with modular structure, and confirm annual free calibration services.
V. Expandability & Compatibility
Support post-purchase installation of humidity, explosion-proof, and data acquisition modules.
Compatible with upper computers and testing fixtures for automated testing.
VI. Manufacturer Services & Qualifications
Provide customized solutions and loaded rate test reports.
Ensure the equipment has passed ISO 9001 and CE certifications, complying with the GB/T 2423.22 standard.
Ø Selection Case
Testing Scenario: Automotive motor controller testing (8kg, AEC-Q100 standard)
Recommended Model: 150L chamber with 10℃/min loaded rate, -40~125℃ temperature range, and explosion-proof function.
Benefits: Balances testing requirements and cost, improving testing efficiency by 4 times.
Equipment selection directly impacts efficiency, quality and data reliability. Standard ovens, precision ovens and temperature-humidity test chambers have distinct functional boundaries and application scenarios. Many enterprises suffer cost waste or functional insufficiency due to improper selection. This guide clarifies selection logic, breaks down matching schemes, avoids common pitfalls and provides precise guidance based on practical scenarios.
1. Core Selection Logic
Adhere to the four-step framework of defining demand types → verifying temperature accuracy → supplementing environmental requirements → matching budget to clarify equipment selection boundaries.
Step 1: Define Demand Types
Choose oven series for process applications (drying, curing, etc.).
Choose temperature-humidity test chambers for environmental reliability verification (extreme temperature variation, humidity exposure).
Note: Ovens lack cooling function and cannot replace test chambers.
Step 2: Verify Temperature Control Accuracy
Standard ovens: Suitable for applications allowing ±5℃ temperature deviation.
Precision ovens: Required for high-precision scenarios (±1℃ tolerance, e.g., electronic packaging, medical sterile drying).
Temperature-humidity test chambers: Ideal for extreme environment testing, with accuracy up to ±1℃ (even ±0.5℃ for premium models).
Step 3: Supplement Environmental Requirements
Ovens: Applicable for ambient temperature heating only.
Temperature-humidity test chambers (including humidity-controlled models): Necessary for low-temperature (-20℃ ~ -70℃), cyclic temperature variation or humidity control (e.g., 85℃/85%RH) applications.
Note: Precision ovens do not support cooling or humidity control functions.
Step 4: Match Budget
Standard ovens (thousands of CNY): For basic drying tasks with limited budget.
Precision ovens (10,000 ~ 100,000 CNY): For processes requiring high precision and stability.
Temperature-humidity test chambers (100,000 ~ hundreds of thousands of CNY): For professional environmental testing; reserve budget for operation and maintenance.
2. Typical Application Scenarios: Demand-Equipment Matching
This section breaks down matching schemes for three key sectors (electronics, automotive, medical & research) to provide intuitive references.
Electronics Industry
Simple component drying (±5℃ tolerance): Standard oven
PCB solder paste curing (±0.5℃ accuracy, ±1℃ uniformity, multi-stage temperature control): Precision oven
Chip cyclic testing (-40℃ ~ 125℃, data traceability required): Temperature-humidity test chamber
Automotive Industry
Basic part drying (±5℃ tolerance): Standard oven
Sensor 24-hour aging test at 85℃ (±0.3℃ accuracy): Precision oven
Battery pack rapid temperature cycling test (-40℃ ~ 85℃): Rapid temperature change test chamber
Medical & Research Industry
Routine consumable drying (±5℃ tolerance): Standard oven
Syringe & catheter sterile drying (±0.5℃ accuracy, clean inner chamber, data traceability): Precision oven with 316 stainless steel enclosure
Plastic material thermal stability study (-30℃ ~ 150℃): Temperature-humidity test chamber
3. Common Selection Pitfalls: Risk Avoidance
Misconceptions often lead to wrong selections. Focus on avoiding these three key pitfalls:
Pitfall 1: Using standard ovens instead of precision ovens
Short-term cost reduction may cause higher product rejection rates and increased long-term costs.
Solution: Always choose precision ovens for applications requiring ±1℃ accuracy; improved yield will offset the incremental cost.
Pitfall 2: Using precision ovens for temperature cycling tests
Ovens lack cooling capability, leading to test failure.
Solution: Directly select temperature-humidity test chambers for low-temperature or cyclic temperature variation tests.
Pitfall 3: Blindly pursuing high-spec test chambers
Results in cost waste and underutilization of functions.
Solution: Select equipment strictly based on actual test parameters to balance demand and budget.
Conclusion
The core of equipment selection lies in precise demand matching. Clarifying demand types and core parameters, combining scenario requirements with budget planning, and avoiding common pitfalls will maximize equipment value, support production quality improvement and boost R&D efficiency.
